Solving Core Packaging Challenges for Barrier Options & Protection Levels | Achieve Pack Sustainable Packaging
Concise B2B technical benchmarks designed to eliminate transit failures, regulatory penalties, and shelf-life loss.
Structure Approved Before It Is Ever Tested
Risk: The laminate looks right on paper and fails on your actual product, wasting the run.
Sample Packs in the Exact Structure, Tested With Your Product
You run your own fill and shelf-life test before any tooling is cut.
Barrier Numbers Missing From the Quote
Risk: You approve a film without knowing its oxygen or moisture transmission rate, then find out on shelf.
OTR and WVTR Stated on Every Quotation
The barrier figure is on the quote, not buried in a datasheet you never see.
Sustainability Claim Without a Certificate Behind It
Risk: An unsubstantiated compostable or recycled claim fails retailer and marketplace review.
Certificate Numbers Issued With the Quote
TÜV OK Compost HOME, BPI, EN 13432, AS 5810, GRS — referenced by certificate number.
Experience 3D Packaging Design & Free Dielines
Preview your pouch in 3D WebGL Studio and export production-ready dielines.
Is This Page For You?
If you need to protect your product from oxygen, moisture, or light while maintaining eco-friendly credentials—you're in the right place.
Food & Beverage
Coffee, snacks, pet food shelf life
Supplements
Protein, vitamins, powders protection
Unsure of Barrier
Free shelf-life testing available
What Are Barrier Options and Why Do They Matter?
Protect your products with the right barrier level while maintaining sustainability. Achieve Pack offers low, medium, and high barrier options in both recyclable and compostable materials to match your product's shelf life requirements.
Barrier Protection Levels:
- Low Barrier (3-6 months) – Ideal for dry goods with fast turnover
- Medium Barrier (6-12 months) – Balanced protection for most products
- High Barrier (12-24 months) – Maximum protection for sensitive products
What barrier upgrades will NOT do
- • NOT keep a recyclable claim alive with heavy foil. Anything above ~5% aluminum foil content generally voids recyclability. For recyclable high barrier, use mono-PE + EVOH under 5% or AlOx/SiOx coatings.
- • NOT fix a short supply chain problem. If your product turns over in weeks, high barrier is wasted spend — medium barrier or standard films will do.
- • NOT match foil with compostable films. Certified compostable barrier reaches roughly 70% of foil performance. Long shelf life plus compostability is a trade-off, not a free lunch.
- • NOT compensate for bad seals or headspace oxygen. Film is only half the system — seal integrity and, where needed, nitrogen flushing decide real shelf life.
Want to feel the difference before committing? The $40+ sample kit is credited to your first order, or send us your product spec.

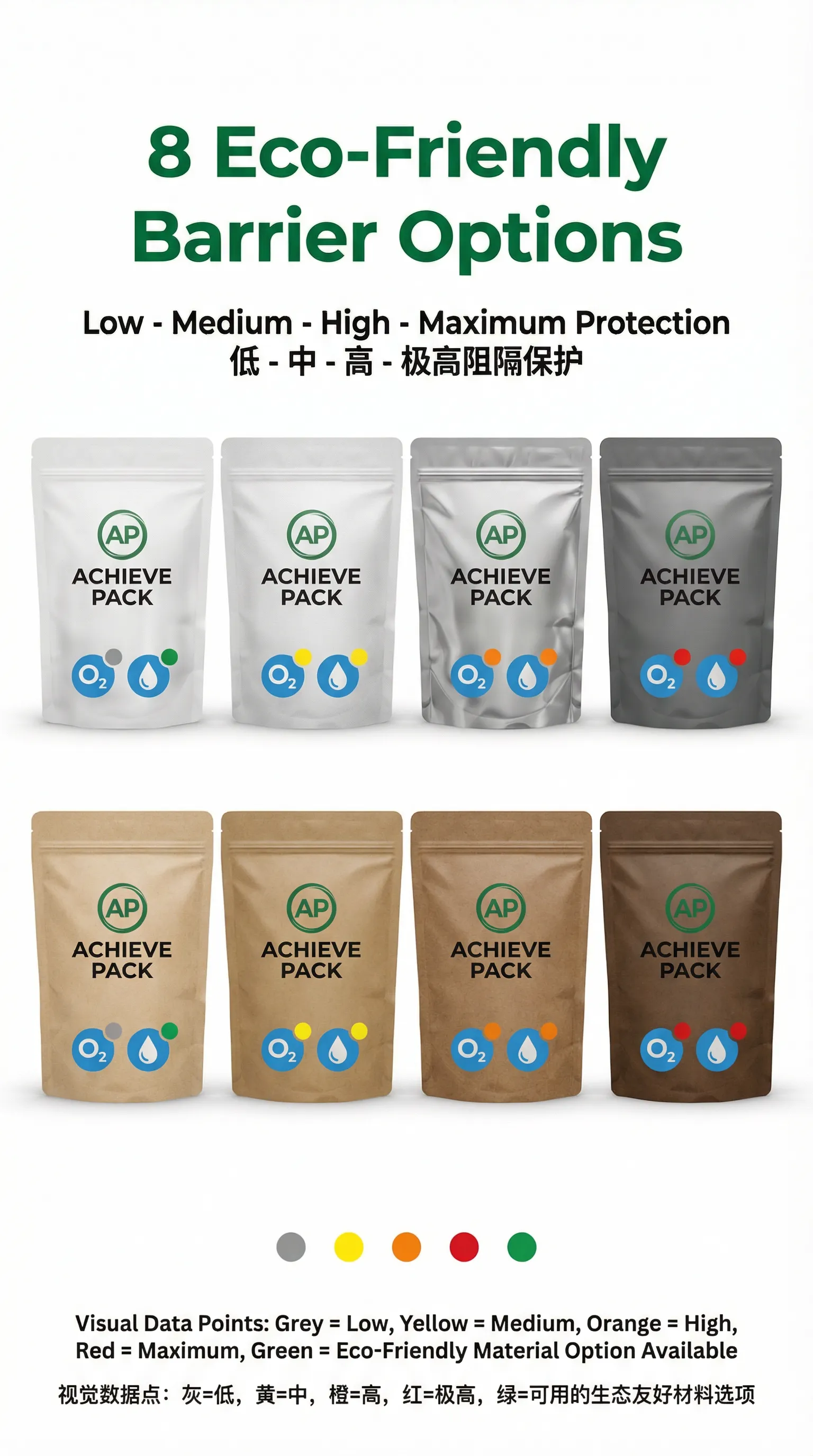

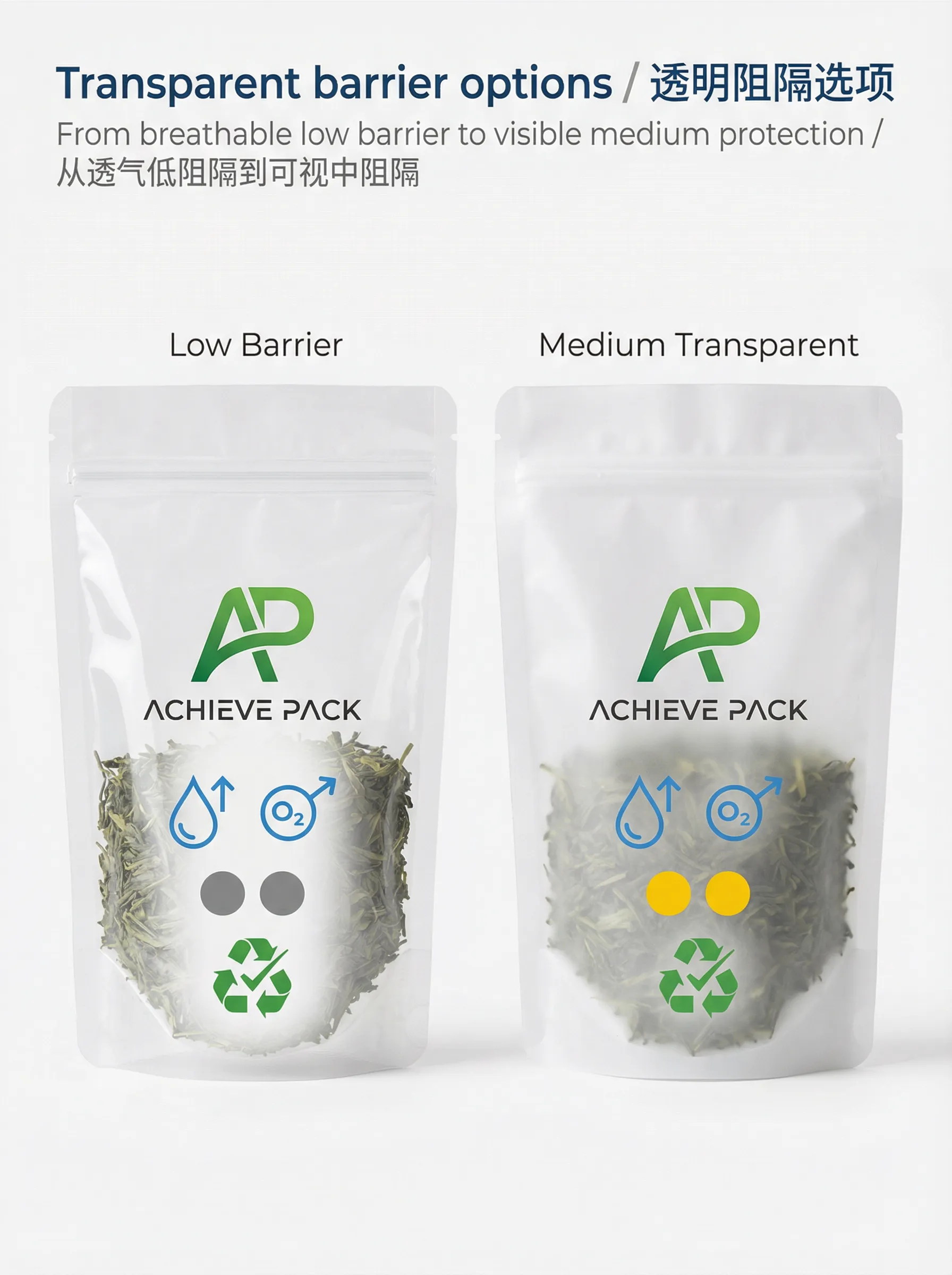

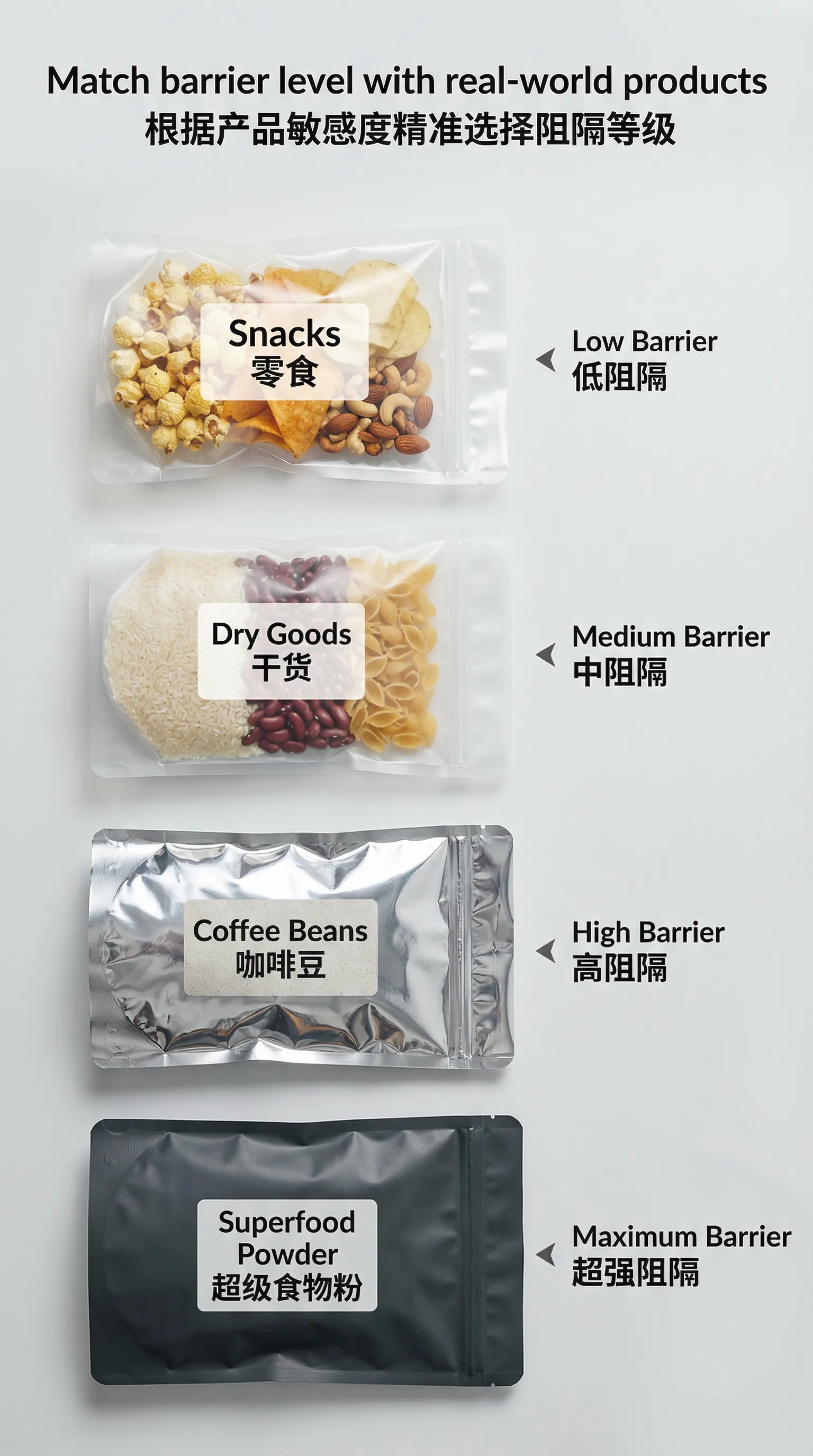

What Do Different Barrier Levels Look Like?
Explore our range of barrier packaging options. Click any image to enlarge:
How Do Low, Medium, and High Barriers Compare?

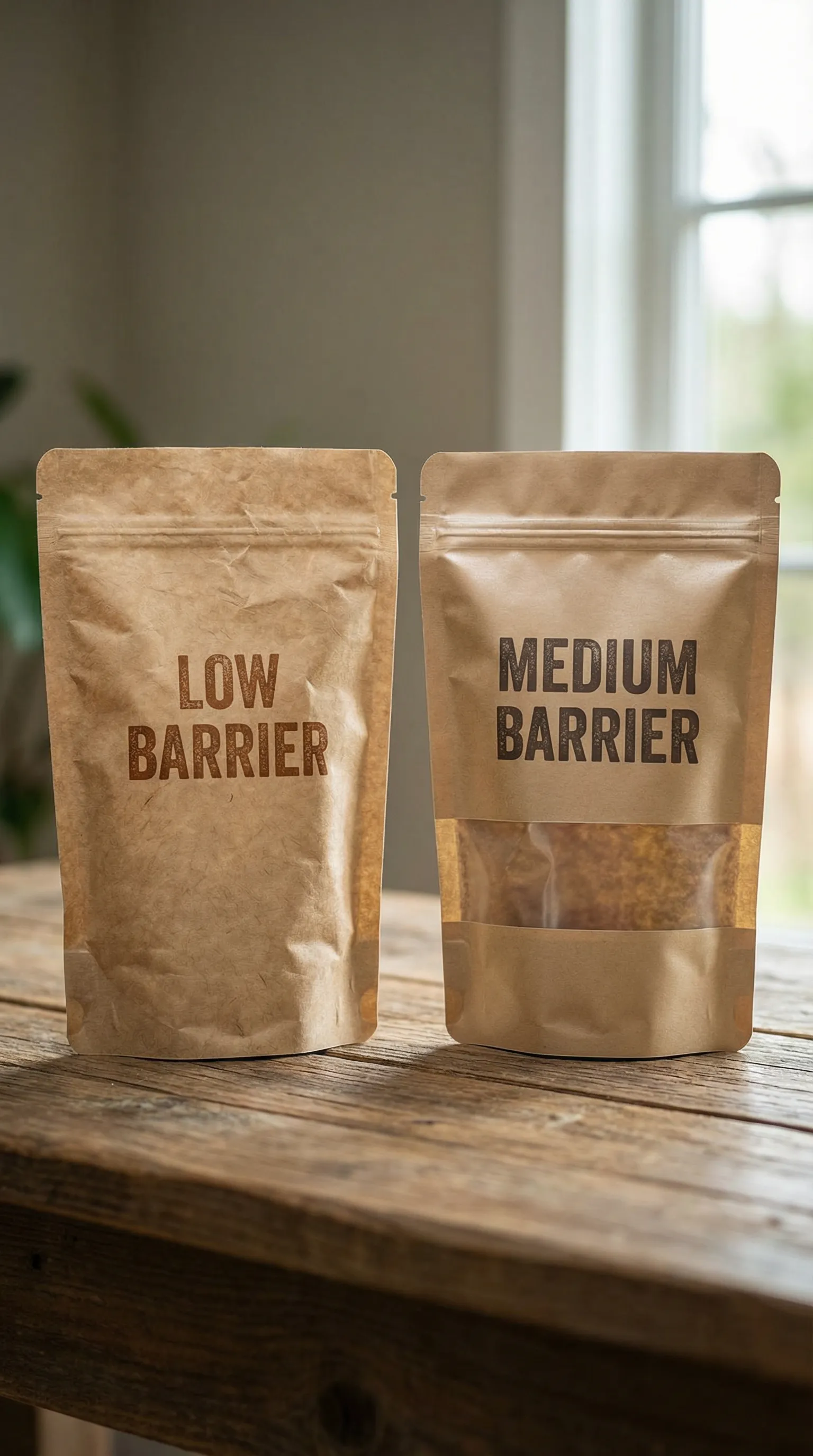

Low Barrier
- • OTR: 50-100 cc/m²/day
- • MVTR: 10-20 g/m²/day
- • Best eco-credentials
- • Lowest cost option
Best for: Dry snacks, cookies, tea, granola
Medium Barrier
- • OTR: 5-20 cc/m²/day
- • MVTR: 2-5 g/m²/day
- • Good sustainability
- • Moderate cost
Best for: Coffee, nuts, pet treats, cereals

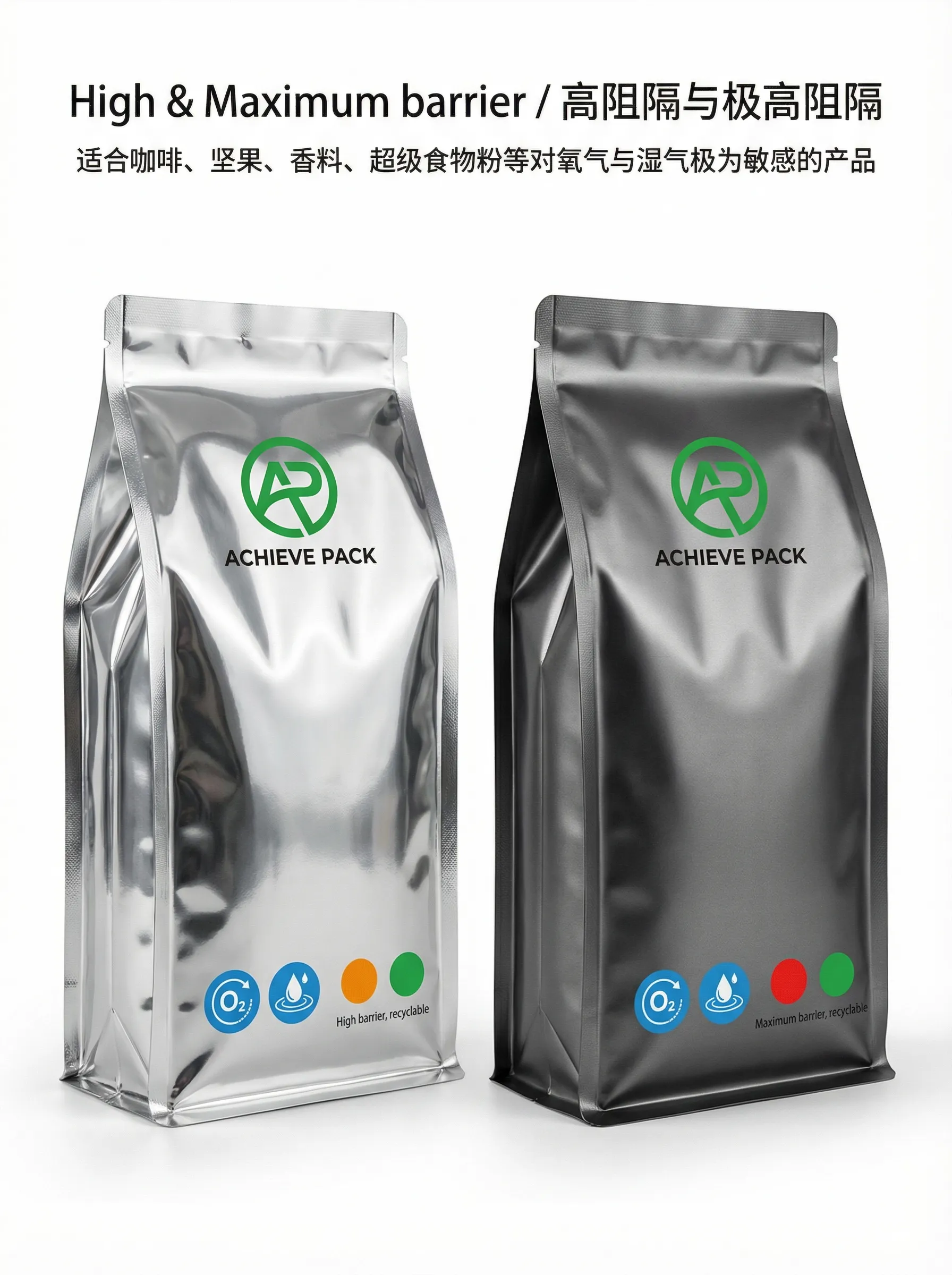

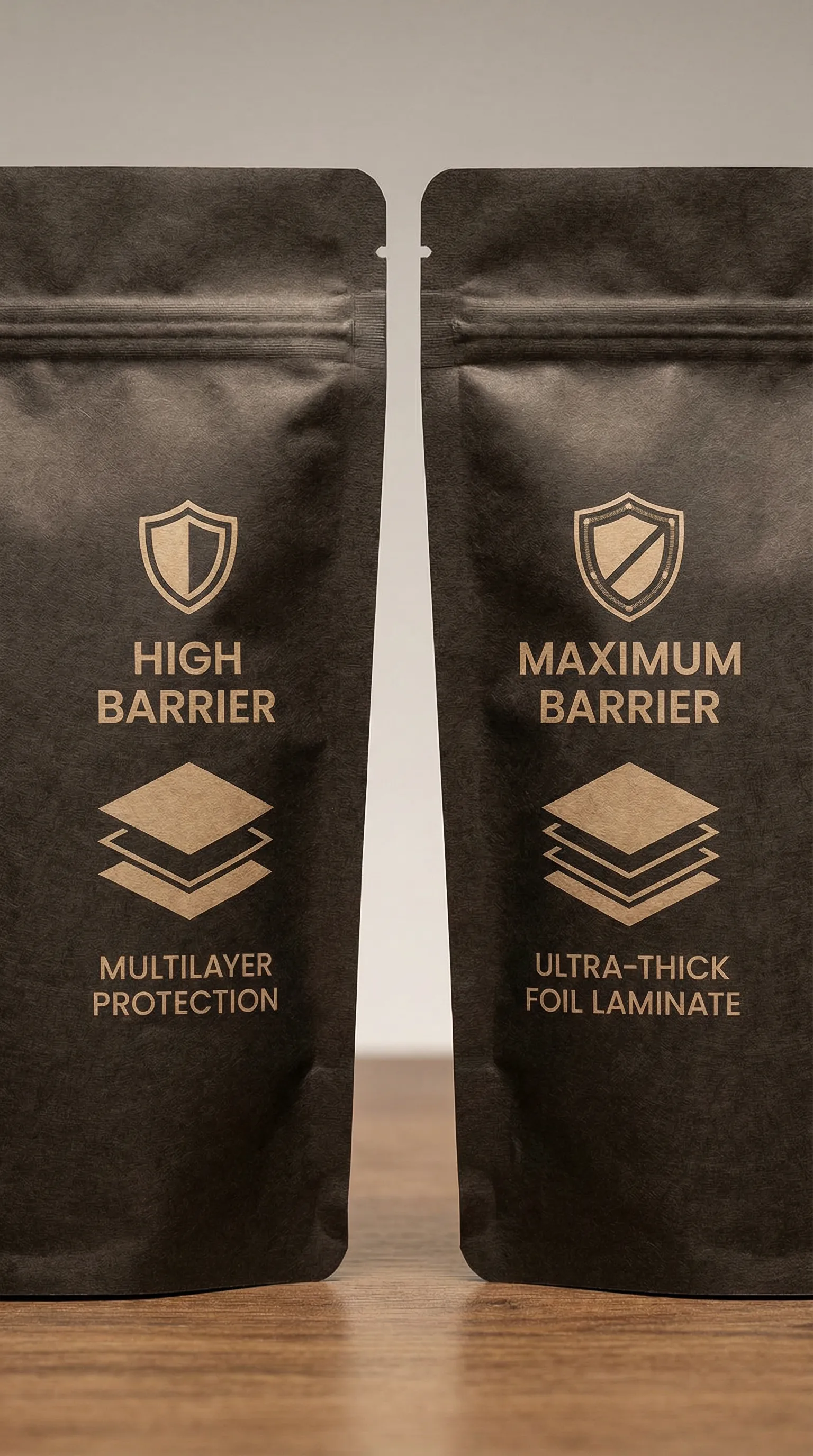

High Barrier
- • OTR: < 1 cc/m²/day
- • MVTR: < 1 g/m²/day
- • Maximum protection
- • Premium positioning
Best for: Coffee, supplements, baby food

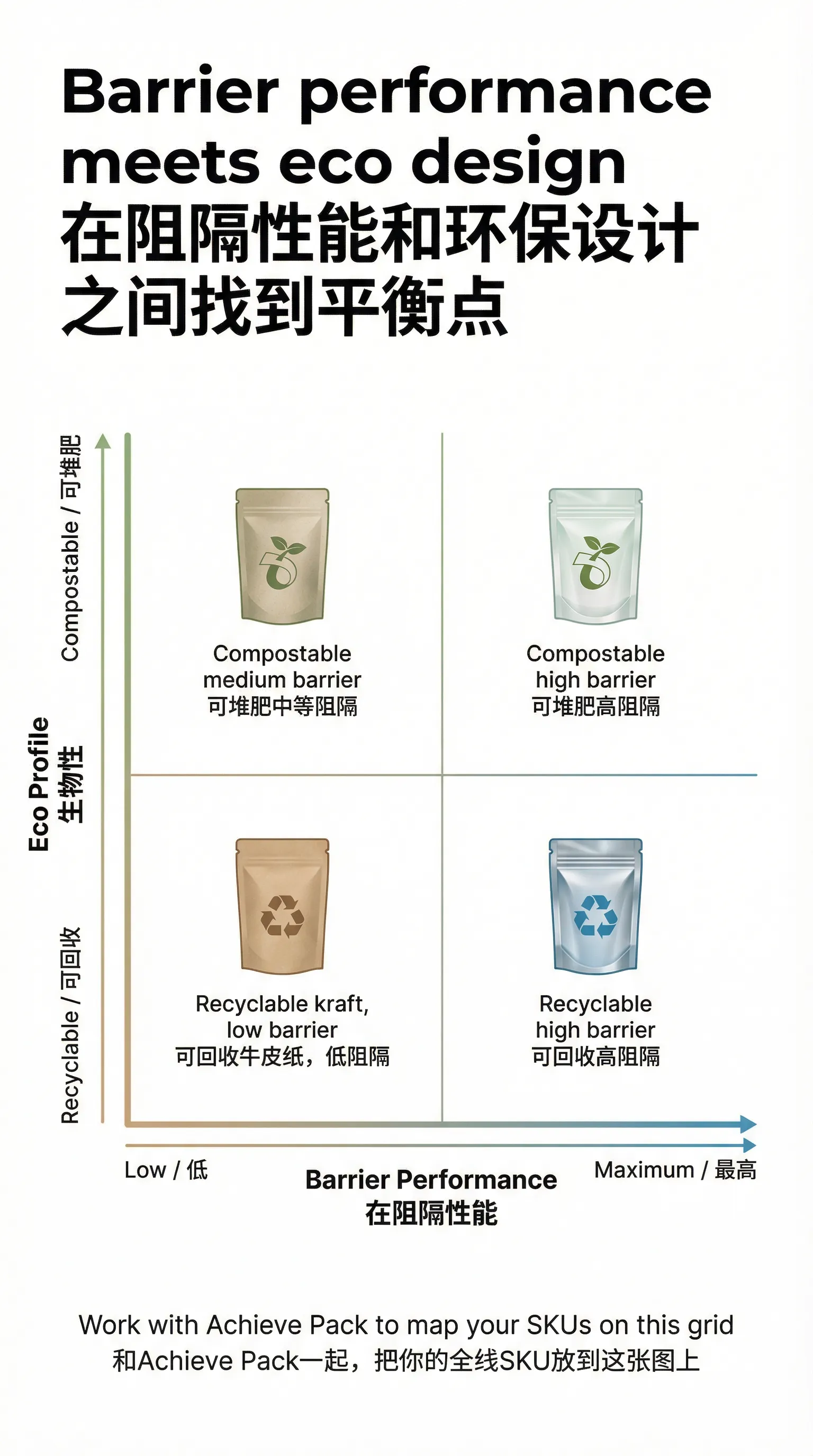

Which Eco-Friendly Materials Offer the Best Barrier?
Choose from eco-friendly barrier solutions:
| Material | Barrier Level | Sustainability | Best Application |
|---|---|---|---|
| Kraft + PLA | Low | Compostable | Dry goods, tea, cookies |
| Mono-PE | Medium | Recyclable | Snacks, pet food |
| Mono-PE + EVOH | High | Recyclable* | Coffee, supplements |
| Bio-PE | Medium | Bio-based | Organic products |
| PCR Plastic | Medium-High | 30-100% recycled | General food |
*EVOH layer is <5% of total structure, accepted in most recycling streams
What Barrier Level Does Your Product Need?
Low Barrier Products
- • Dried fruits & vegetables
- • Cookies & biscuits
- • Loose-leaf tea
- • Granola & muesli
- • Rice & grains
Medium Barrier Products
- • Roasted coffee beans
- • Nuts & seeds
- • Pet food & treats
- • Protein powders
- • Breakfast cereals
High Barrier Products
- • Ground coffee
- • Vitamins & supplements
- • Baby food
- • Freeze-dried products
- • Pharmaceutical powders
How to Get Started with Barrier Testing
Not sure which barrier level you need? We offer free shelf-life testing to determine the optimal barrier for your product.
What If You're Not Sure Which Barrier to Choose?
"Not sure which barrier I need?"
Free shelf-life testing to determine optimal barrier
"Is high-barrier still eco-friendly?"
Yes, mono-PE with EVOH (<5%) is recyclable
"Can I get samples?"
Free material samples for testing
"What's the minimum order?"
500 units for all barrier levels
How Can You Take the Next Step?
Choose How You'd Like to Connect
Book a Call
30-min free consultation
Industry Applications
Different industries have specific barrier requirements. Choosing the right barrier is key to product success.
Food & Beverage Industry
Coffee, nuts, snacks, pet food requiring precise oxygen and moisture protection.
Health & Supplements Industry
Vitamins, protein powders, and nutraceuticals requiring high barrier to preserve active ingredients.
Infant Food & Pharma
Baby food and sensitive formulas requiring ultra-high safety barrier protection.
Customer Success Story
“After upgrading from low to medium barrier packaging, our specialty coffee shelf life extended from 3 to 9 months, increasing customer satisfaction by 40%.” — Founder, Specialty Coffee Brand
Market Data & Intelligence
The barrier packaging market continues to expand. Understand key trends to make informed packaging decisions.
Market Trend Insights
Demand for sustainable barrier packaging is growing rapidly. Mono-PE + EVOH structures lead market growth due to recyclability, projected to capture 45% of the high-barrier market by 2027.
Material Comparison
Compare key performance metrics across barrier materials to select the ideal packaging structure.
| Barrier Level | OTR (Oxygen Transmission) | MVTR (Moisture Transmission) | Recommended Material | Relative Cost |
|---|---|---|---|---|
| Low Barrier | 50-100 cc/m²/day | 10-20 g/m²/day | Kraft + PLA, Mono-PE | $ |
| Medium Barrier | 5-20 cc/m²/day | 2-5 g/m²/day | Mono-PE, Bio-PE | $$ |
| High Barrier | <1 cc/m²/day | <1 g/m²/day | Mono-PE + EVOH, PCR | $$$ |
Material Selection Guide
When choosing a barrier level, evaluate product sensitivity, target shelf life, and packaging budget. We provide complimentary shelf-life testing to validate your packaging choice.
Biopolymer Lab Validation & Compostability Proof
We don't make vague green claims. Our biopolymers (NatureFlex, PLA/PBAT) are batch-tested to verify 100% biodegradation in home and industrial composting within 180 days with zero toxic ecotoxicity residues.
Compostable Barrier (OTR)
Tested barrier layers (NK/NatureFlex) ensuring moisture and aroma protection.
Organic Chemical Purity
Exceeds EN 13432 criteria for organic safety and clean soil composting.
Biopolymer Sealing Window
Narrowed sealing temperature range preventing biopolymer deformation or thermal burn.
TÜV OK Compost HOME
Guarantees complete organic degradation in backyard compost bins within 26 weeks.
Puncture Strength (ASTM F1306)
Ensures biopolymer bag walls resist puncture during manual handling and packing.
Tensile Strength (ASTM D882)
Ensures biopolymer bags support products securely without structural stretch.
Packaging Transformation for Barrier Options & Protection Levels | Achieve Pack Sustainable Packaging
See how upgrading from generic commoditized bags to precision-engineered flexible barrier packaging eliminates transport failures and boosts shelf authority.
Standard / Generic Packaging (Before)
Standard stock bags fail under transit stress and expose sensitive goods to moisture, UV light, and oxygen.
- Rapid Oxidation & Flavor DegradationCheap films allow O2 & moisture ingress, spoiling contents in < 30 days.
- High Seal Breakage in TransitThin seams fail under drop tests, leading to customer refunds & lost trust.
- Heavy Plastic Tax PenaltiesMulti-layer unrecyclable packaging incurs up to €800/ton in EU PPWR fines.
- High MOQs & Plate Cost FrictionTraditional printers force 10,000+ unit minimums and $1,500 cylinder fees.
Achieve Pack / Pouch Eco Solution (After)
Custom engineered multi-layer pouch structure tailored to your exact moisture barrier, seal strength, and aesthetic requirements.
- Ultra High-Barrier Foil/EVOH CoreGuaranteed OTR < 0.1 cc/m²/day, keeping contents fresh for 18–24 months.
- Reinforced 45N/15mm Localized Heat Seal180°C precision seam dwell time prevents bursting even under 2-meter drops.
- 100% Certified Eco ComplianceTÜV OK Compost HOME (EN13432) & Mono-PE Recyclable structures (0% Tax).
- HD Digital Printing with 500-Unit Low MOQsPrint multi-SKU runs in 7 business days with zero setup plate charges.
Questions We Get Asked
How do I know which barrier level my product needs?▼
Can high-barrier packaging still be sustainable?▼
What is OTR and MVTR?▼
Do you offer barrier testing services?▼
Related Stuff
How We Ensure Absolute Accuracy and Trustworthiness
At Achieve Pack, sustainable packaging isn't just about printing; it's about hands-on material science. This article has been written and verified by Ryan Wong, a packaging specialist with 14+ years of experience engineering biopolymer stacks for DTC startups and Fortune 500 companies.
All research, material barrier specifications (OTR, WVTR), heat-seal values (N/15mm), and compostability timelines cited in our guides are backed by testing inside the Achieve Pack Materials Testing Lab. We cross-reference our data with official certification registries from BPI (Biodegradable Products Institute), TÜV Austria (OK Compost HOME), and FSC (Forest Stewardship Council).
Ryan Wong
Supply Chain Director
B.Eng honors degree graduate from Hong Kong Polytechnic University. Serving brands in 8 countries.
View Expert Profile →Tell us your product and target shelf life.
We'll recommend the minimum barrier that protects it, send a free /studio mockup, and quote from 500 pcs digital (2–3 weeks) or gravure at volume — roughly 45% cheaper per unit.
Compostable Solution
Fully compostable flexible packaging certified under ASTM D6400 and EN 13432. Engineered to break down completely in industrial or home composting environments within 180 days, returning to the soil with zero toxic residues.
- ASTM D6400 & EN 13432 Certified
- Breaks down within 180 days in soil
- High gas & moisture barrier options
- Food-contact safe (FDA compliant)
