Flat Pouches | Three-Side Sealed Bags Specifications
Solving Core Packaging Challenges for Flat Pouches | Three-Side Sealed Bags
Concise B2B technical benchmarks designed to eliminate transit failures, regulatory penalties, and shelf-life loss.
Oxygen Ingress & Staling in High-Fat Snacks
Risk: Crisp product goes soft and rancid well before the date code.
High-Barrier Film with Optional Nitrogen Flush
OTR matched to your fat content, quoted as a number.
Breakage & Pack Rattle in Transit
Risk: Product arrives as crumbs and the bag looks half empty.
Pillow, Quad-Seal or Gusseted Format with Headspace Control
Format and fill ratio tested with your actual product.
Multi-SKU Launch Costs Adding Up
Risk: Each flavour needs its own cylinders, so the range never launches.
Digital Printing from 500 Units per SKU
All flavours in one production run, zero plate fees.
Experience 3D Packaging Design & Free Dielines
Preview your pouch in 3D WebGL Studio and export production-ready dielines.
Is This Page For You?
You need single-serve sachets, samples, or snack portions that look retail-ready — without paying for a stand-up pouch you don't need. If that's you, a flat pouch is the lowest-cost way to get your product into someone's hand.
Sample Producers
Product samples, trial sizes
Food Service
Sauce sachets, sugar packets
Tea & Spice Brands
Single-serve portions

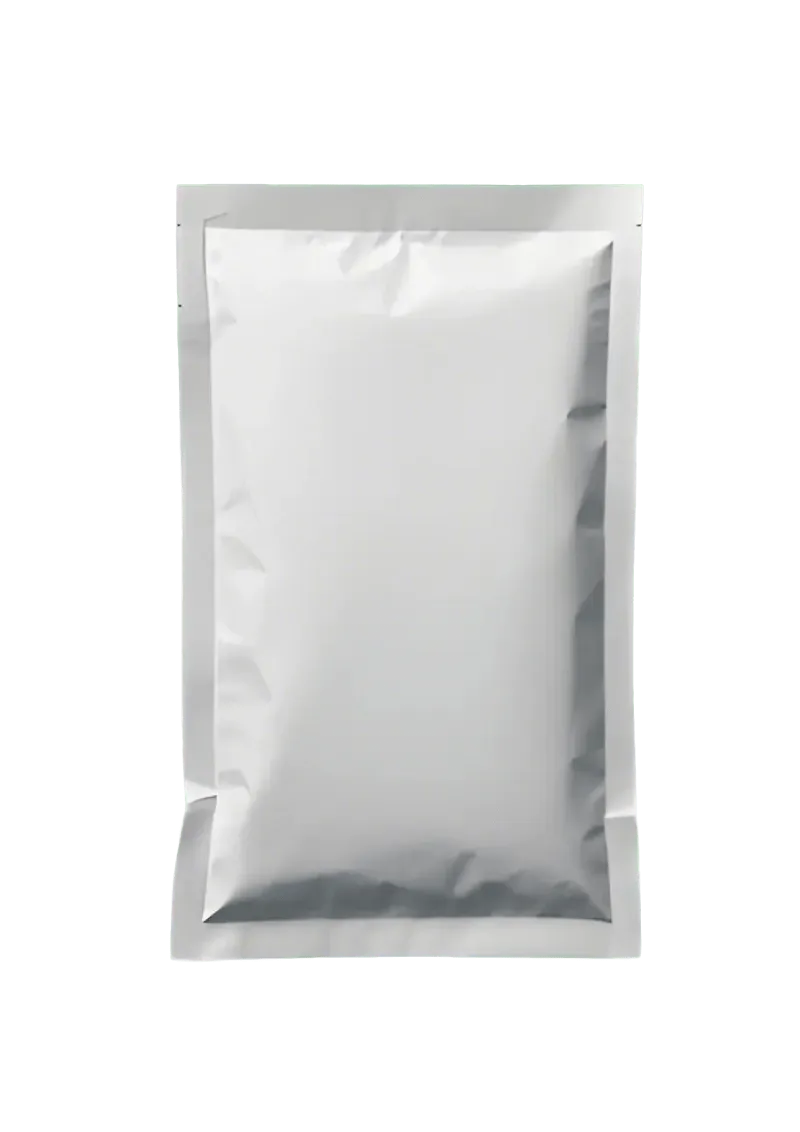

What is a 3-Side Seal Pouch?
A 3-side seal pouch (also called flat pouch or sachet) is sealed on three sides with an open top for filling. It is the most economical flexible packaging format — you pay for film and seal, nothing else. Ideal for samples, single-serve products, and lightweight items.
Key Advantages:
- ✓ Most cost-effective pouch format
- ✓ Efficient material usage (less waste)
- ✓ Compact shipping and storage
- ✓ Quick to fill and seal
- ✓ Easy tear-open access
3-Side vs 4-Side Seal
3-Side Seal
Made from folded film, sealed on 3 sides:
- • One folded edge (no seal)
- • Two side seals
- • Bottom or top seal after filling
- • Most economical option
4-Side Seal
Made from two separate sheets:
- • Sealed on all 4 edges
- • Slightly more surface area
- • Different front/back materials possible
- • Slightly higher cost
Common Applications
Available Features
Opening Features
- • Tear notch (V-notch or laser scored)
- • Easy-peel seal
- • Perforated line
- • Die-cut shapes
Additional Options
- • Hang hole for display
- • Clear window
- • Matte/gloss finish
- • Foil stamping
3-Side Seal Pouch Options
Still Not Sure? Straight Answers
"Are sachets eco-friendly?"
Standard laminates are not recyclable. Compostable PLA and paper/PLA options are available — certified for industrial composting (EN 13432), not home compost.
"What's the minimum order?"
500 pcs with digital printing, 2–3 week lead time.
"Can they have zippers?"
Yes — but if resealability matters, a stand-up pouch is usually better value.
"Can I get samples?"
The $40+ sample kit ships with multiple materials and sizes — credited to your first order.
Choose How You'd Like to Connect
Choose How You'd Like to Connect
Book a Call
30-min free consultation
Industry Applications
Food & Condiments
Sauce packets, sugar packets, seasoning sachets, spice packs
Cosmetic Samples
Face mask serums, lotion samples, skincare trials
Pharmaceutical & Health
Pharmaceutical portions, supplement trials, nutrition packs
Customer Success Story
"After switching to 3-side seal sachets, our condiment brand reduced unit costs by 35% while perfectly meeting food service single-use needs, significantly expanding market coverage."
— Condiment manufacturer, 2M+ units/month
Market Data & Intelligence
Market Trend Insights
Material Comparison
| Material Type | Barrier | Cost | Eco-Friendly | Recommended Use |
|---|---|---|---|---|

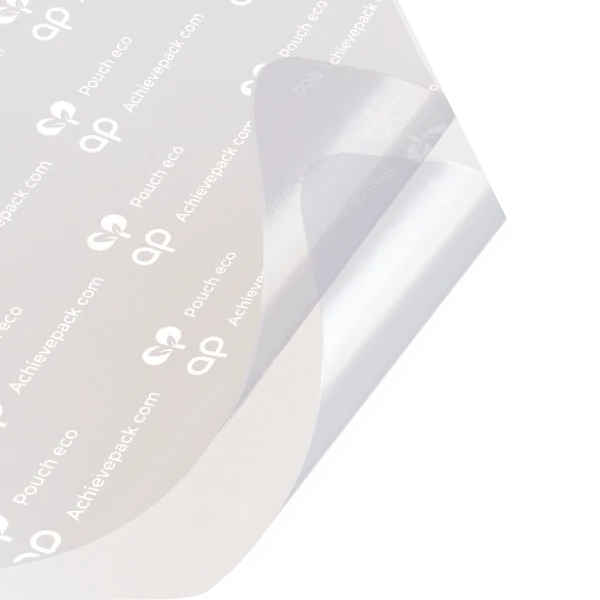

| PET/PE Clear | Medium | $ | Not recyclable (multi-material laminate) | Sugar packets, dry foods |
| Aluminum Foil Laminate | High | $$ | Not recyclable | Sauces, pharmaceuticals |

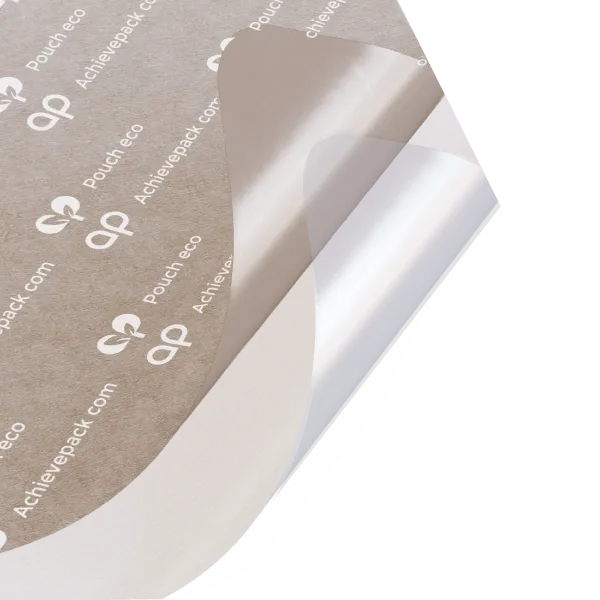

| Kraft Paper Laminate | Medium | $$ | Natural look; layers not separable for recycling | Tea bags, spices |
| PLA Compostable | Low-Medium | $$$ | Compostable (industrial facilities only, EN 13432) | Organic foods, samples |
Material Selection Guide
Pick by what your product needs to survive, not by the greenest-sounding label. Sauces and anything moisture-sensitive need aluminum foil laminate. If your customers have access to industrial composting, PLA works. Standard PET/PE laminates are the cheapest option — but they are not recyclable, so don't claim they are.
What Flat Pouches Will NOT Do
- NOT stand up on a shelf. No gusset means the pouch lies flat. If shelf presence drives your sales, step up to a stand-up pouch.
- NOT hold liquids for 12+ months without foil. A sauce sachet in a standard laminate gives you months, not a year. Long shelf life needs a foil or high-barrier structure — tell us your target and we will spec it.
- NOT resealable by default. Flat pouches are tear-open, single-use. A zipper is possible, but at that point a stand-up pouch is usually better value.
- NOT the green option by default. Standard PET/PE and foil laminates are not recyclable. If disposal matters to your customers, ask for the compostable PLA version (industrial composting only) or a mono-material structure.
Still on the fence? Order the $40+ sample kit — credited to your first order — or contact us with your product details.

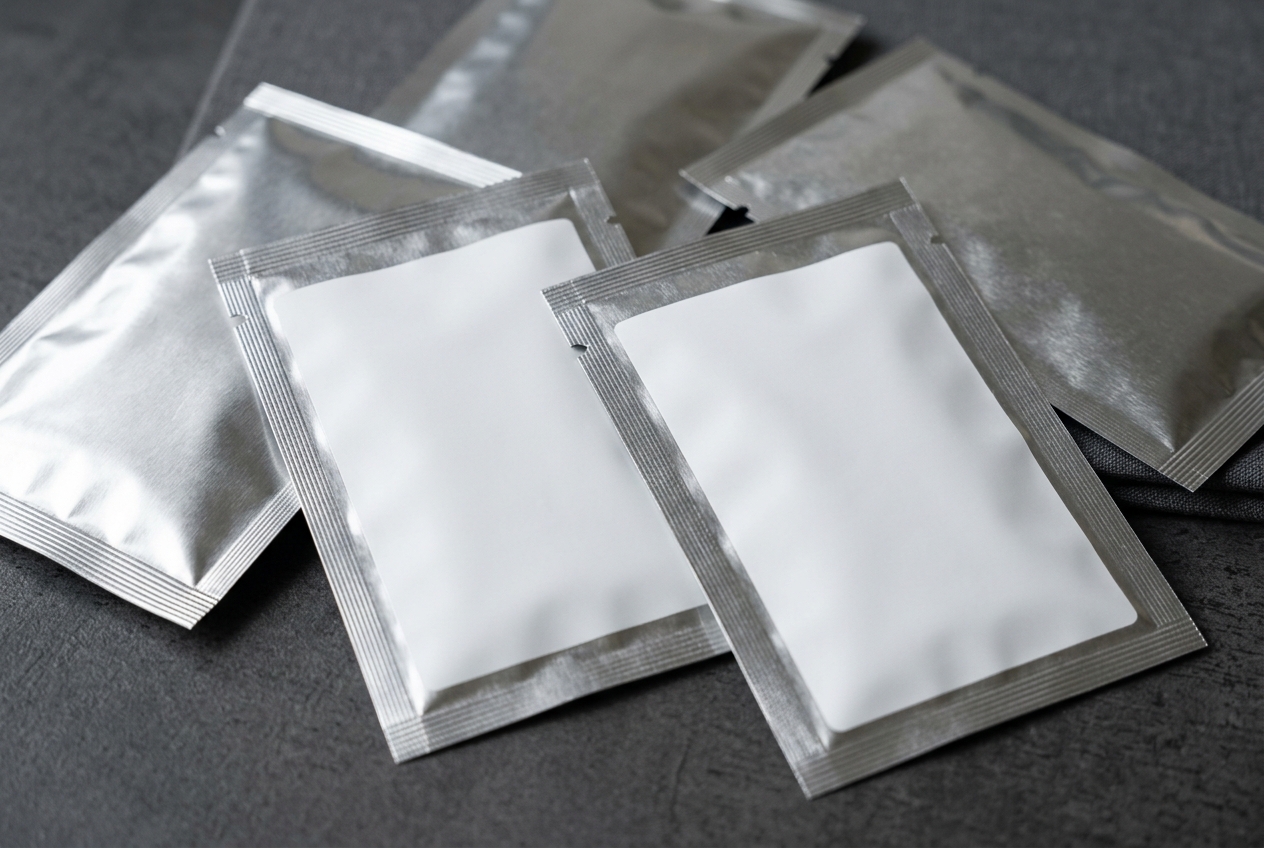

5 Common Flat Pouch Problems (And Solutions)
Weak Seals & Leaks
Solution: Reinforced wide seal borders and high-temp laminating for secure edges.
Messy, Uneven Opening
Solution: Precision laser scoring and V-notch for a clean, straight tear.
Moisture Caking in Powders
Solution: High-barrier AL or VMPET layers to block moisture.
Blurry Print on Small Sizes
Solution: High-res rotogravure printing for crisp text.
Slow Packing on Auto-Lines
Solution: Custom slip additives for low friction and fast filling.
When a flat pouch is NOT the right call
- →Your product needs to stand on a shelf — flat pouches don't; a stand-up or box-bottom structure does the job.
- →Heavy or bulky fills — a flat pouch's weak point is its seams under weight; heavy contents belong in a gusseted or box-bottom structure.
- →You're judging from renders alone — flat pouches collapse and crinkle in real life; the sample kit shows the actual fill behaviour.
The $40+ Sample Kit lets you fill it with your product and see how it sits — before you commit artwork.
HP Indigo Color Accuracy & Printing Proofs
Low-MOQ runs must deliver enterprise-level visual branding. We inspect color alignment tolerances, ink adhesion strength, and white underprint opacity using spectrophotometer color matching to ensure pixel-perfect pouch graphics.
Color Matching (X-Rite)
Spectrophotometer validation ensuring brand color consistency across batches.
Ink Adhesion Test (ASTM D3359)
Tape peel test to ensure ink does not peel or scratch during shipping and handling.
White Ink Underprint Opacity
Ensures rich, vibrant colors when printing on transparent or brown kraft films.
Digital Press Calibration
HP-validated polymer ink integration, offering excellent heat and rub resistance.
Lamination Peeling Force
Ensures the printed film layer never delaminates or separates from barrier layers.
VFFS Low-Temp Sealing
Ensures digital-printed pouches seal perfectly on standard heat-sealer jaws.
Packaging Transformation for Flat Pouches | Three-Side Sealed Bags
See how upgrading from generic commoditized bags to precision-engineered flexible barrier packaging eliminates transport failures and boosts shelf authority.
Standard / Generic Packaging (Before)
Standard stock bags fail under transit stress and expose sensitive goods to moisture, UV light, and oxygen.
- Rapid Oxidation & Flavor DegradationCheap films allow O2 & moisture ingress, spoiling contents in < 30 days.
- High Seal Breakage in TransitThin seams fail under drop tests, leading to customer refunds & lost trust.
- Heavy Plastic Tax PenaltiesMulti-layer unrecyclable packaging incurs up to €800/ton in EU PPWR fines.
- High MOQs & Plate Cost FrictionTraditional printers force 10,000+ unit minimums and $1,500 cylinder fees.
Achieve Pack / Pouch Eco Solution (After)
Custom engineered multi-layer pouch structure tailored to your exact moisture barrier, seal strength, and aesthetic requirements.
- Ultra High-Barrier Foil/EVOH CoreGuaranteed OTR < 0.1 cc/m²/day, keeping contents fresh for 18–24 months.
- Reinforced 45N/15mm Localized Heat Seal180°C precision seam dwell time prevents bursting even under 2-meter drops.
- 100% Certified Eco ComplianceTÜV OK Compost HOME (EN13432) & Mono-PE Recyclable structures (0% Tax).
- HD Digital Printing with 500-Unit Low MOQsPrint multi-SKU runs in 7 business days with zero setup plate charges.
Flat Pouch Size Guide
| Size | Dimensions | Typical Capacity | Common Use |
|---|---|---|---|
| Small sachet | 50 × 70mm | 5-10g / 5-10ml | Sugar packets, samples |
| Medium sachet | 70 × 100mm | 10-30g | Spices, sauce sachets |
| Large sachet | 100 × 150mm | 30-100g | Tea outer, seed packets |
| Sample pouch | 80 × 120mm | 20-50g | Product samples |
| Promotional | 120 × 180mm | 50-100g | Promotional items |
Questions We Get Asked
What is the difference between 3-side seal and 4-side seal?▼
What is the minimum order for sachets?▼
Can flat pouches have a resealable zipper?▼
Are flat pouches available in compostable materials?▼
Related Stuff
How We Ensure Absolute Accuracy and Trustworthiness
At Achieve Pack, sustainable packaging isn't just about printing; it's about hands-on material science. This article has been written and verified by Ryan Wong, a packaging specialist with 14+ years of experience engineering biopolymer stacks for DTC startups and Fortune 500 companies.
All research, material barrier specifications (OTR, WVTR), heat-seal values (N/15mm), and compostability timelines cited in our guides are backed by testing inside the Achieve Pack Materials Testing Lab. We cross-reference our data with official certification registries from BPI (Biodegradable Products Institute), TÜV Austria (OK Compost HOME), and FSC (Forest Stewardship Council).
Ryan Wong
Supply Chain Director
B.Eng honors degree graduate from Hong Kong Polytechnic University. Serving brands in 8 countries.
View Expert Profile →Test Your Product in a Flat Pouch Before You Commit
Order the $40+ sample kit — credited to your first order — and run your product through real fill, seal, and tear tests before you commit to a production run.
See the Material in Action
Real footage of our eco-friendly packaging structures in action.
Compostable Solution
Fully compostable flexible packaging certified under ASTM D6400 and EN 13432. Engineered to break do...
- ASTM D6400 & EN 13432 Certified
- Breaks down within 180 days in soil
Post-Consumer Recycled (PCR)
Made from high-quality post-consumer recycled plastic waste. Our PCR structures reduce carbon footpr...
- Saves post-consumer waste from landfills
- Lowers carbon footprint substantially
Plant-Based Bio-PE
Derived from sustainably-farmed Brazilian sugarcane. It captures atmospheric CO2 during growth and i...
- Captures CO2 during plant growth
- 100% recyclable in regular PE stream (#4)
Recyclable Mono-Material
Engineered using Mono-PE or Mono-PP structures to enable simple, circular sorting and recycling. Com...
- 100% recyclable mono-polymer structure
- Meets EU Circular Economy directives
