What Your Back Seam Actually Decides
When a flat packaging film is rolled and formed into a pouch on a vertical form fill seal (VFFS) or horizontal form fill seal (HFFS) machine, the film edges must be sealed down the back. That joint — the back seam — decides three things you care about: whether your barrier holds, whether the pouch survives transit, and how much film you pay for per unit.
If you pack sensitive goods — coffee, infant formula, liquid concentrates — a hermetic fin seal is close to mandatory. If you pack lightweight dry snacks where every millimeter of film is margin, a lap seal's material savings may matter more than maximum seam strength.
5 Seam Failures That Cost Buyers Money — and the Fix for Each
1. Seam Bursting and Leaking During Transit
Lap seals depend on the adhesion between the inner sealant and outer heat-resistant layers. Under shipping pressure, this weak interface can fail. Solution: We utilize Fin Seals (inside-to-inside PE bonding) to create a high-strength hermetic weld, yielding a 99.9% leak-free transit rate.
2. Graphic Interruption on the Back Panel
Fin seals create a protruding fin that can split and distort critical barcodes, nutrition tables, or branding text. Solution: We offer tacked-down fin seals where the fin is flattened and heat-sealed to one side, keeping the back panel smooth and readable.
3. High Film Material Waste and Overhead
Fin seals require an extra 12-20mm of film width per pouch to form the pinched fin, leading to high material costs. Solution: For non-sensitive, lightweight items like potato chips, we transition the line to a Lap Seal, saving up to 15% in raw film area.
4. Channel Leaking in Liquid or Powder Packaging
Liquid or fine powder can get trapped in the junction of a lap seal, creating channels for air and moisture. Solution: We enforce multi-point temperature-calibrated fin seals that melt and fuse the inner polyethylene layers, blocking product migration.
5. Wrinkling and Burn-Through During High-Speed Sealing
Inconsistent dwell times or temperature spikes on VFFS seal jaws can cause film wrinkling or seal burn-through. Solution: We recommend co-extruded films with a wider seal window (e.g., MOpp/PE) paired with continuous-motion seal bar rollers.
From Ryan Wong's Engineering Notebook
Expert Engineering Insight
"During a high-speed Vertical Form Fill Seal (VFFS) production run for a BRC-certified coffee client, we encountered persistent micro-leaks along the back seam. The client was utilizing a co-extruded film with a Lap Seal structure to save 12% on film consumption. However, because the outer polyester layer wasn't fully compatible with the inner polyethylene sealant layer under high-speed thermal contact, microscopic channels formed. We redesigned the flow-wrap forming collar to switch to a tacked-down Fin Seal (inside-to-inside bonding). This change eliminated the leakage rate entirely (reducing it from 4.2% to 0.0%) while maintaining a flat, retail-ready back panel."
Ryan Wong
Co-Founder & Chief Packaging Engineer (14+ Years Experience)
Have a technical question? Schedule a 15-minute packaging audit with Ryan →Visual Comparison

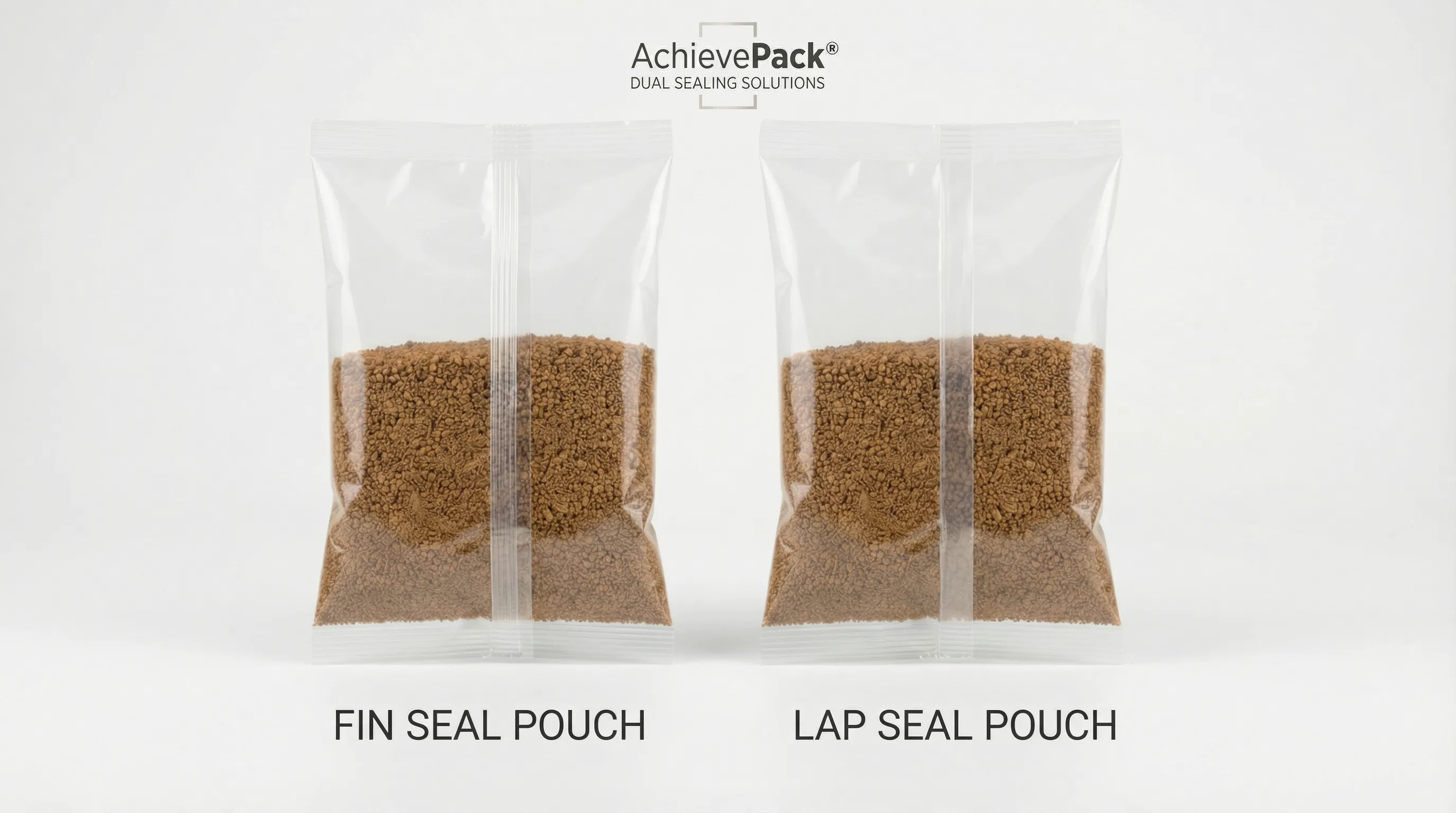

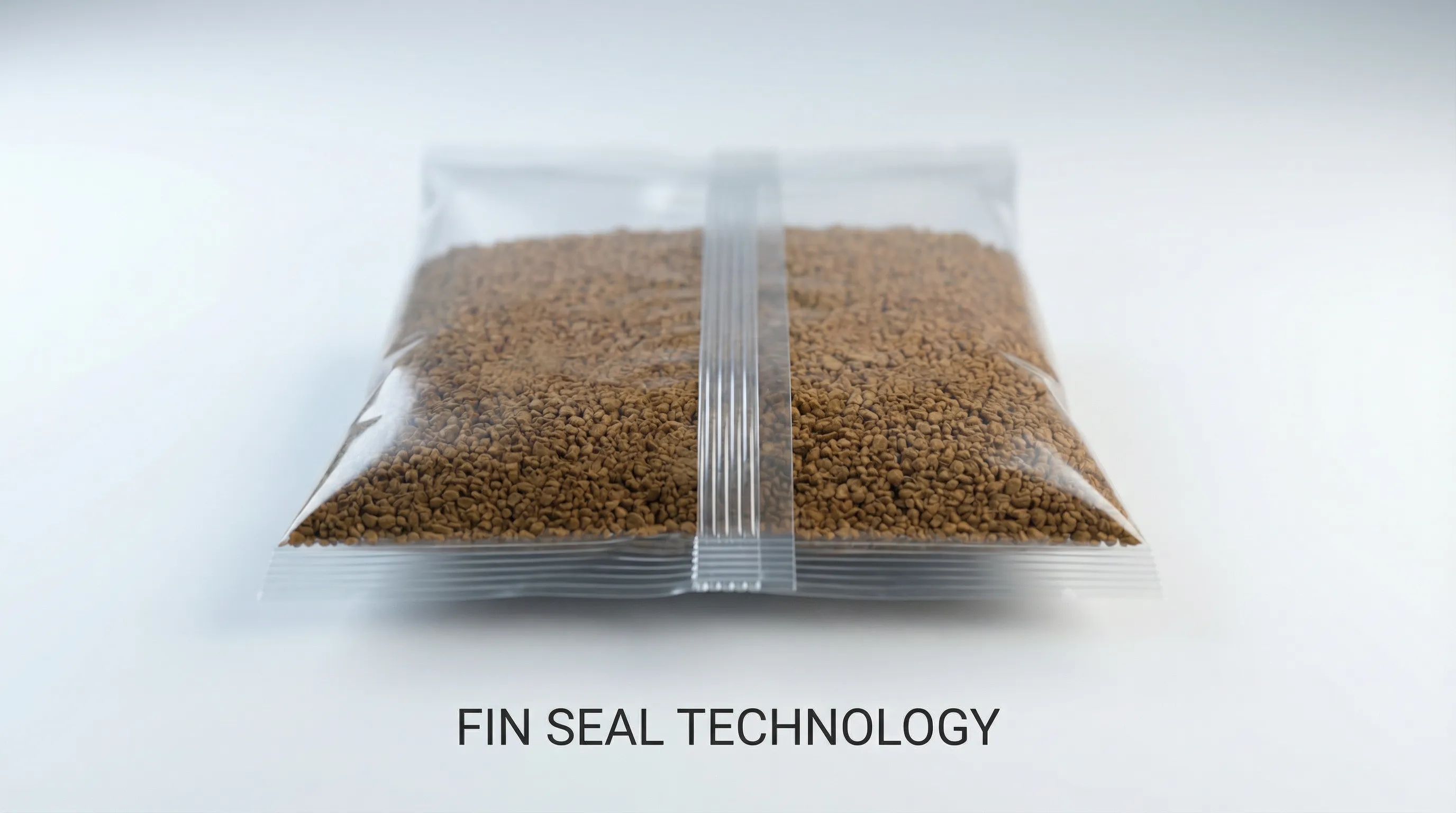

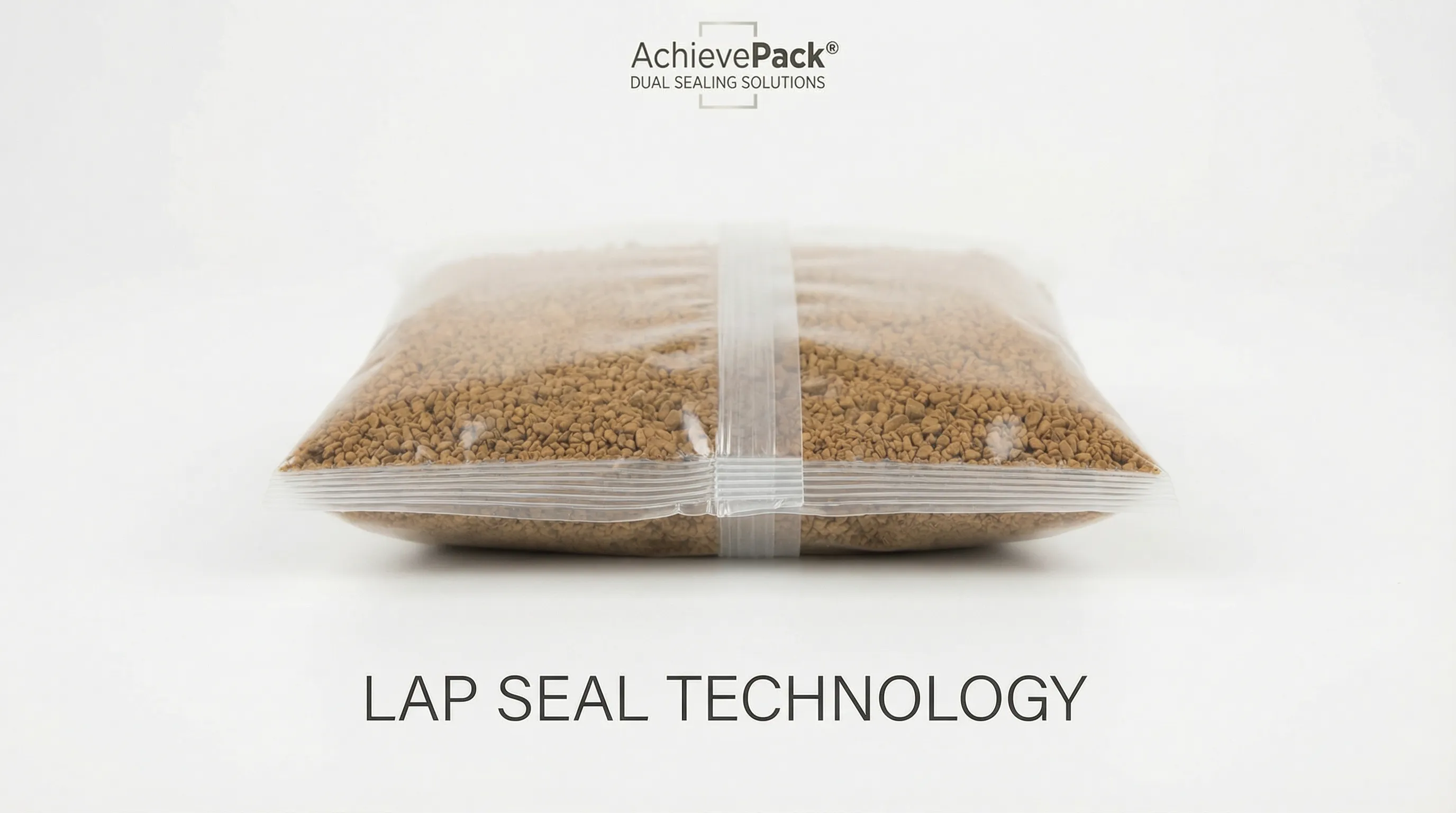

Continuous film alignment comparison between inside-to-inside fin seal and inside-to-outside lap seal structures.
When the Seam Type Is NOT Your Real Problem
Fin vs lap is a real decision — but buyers sometimes bring it to us when the seam was never the issue:
- Your film's sealant layer doesn't match your product. Oily, acidic, or wet fills need a compatible sealant resin. No seam geometry compensates for a mismatched film — fix the film spec first.
- You buy premade pouches. If you don't run VFFS/HFFS equipment, the back seam was decided at the factory. Your real decisions are pouch format, size, and material — start there.
- Your product is staling or oxidizing in pack. That is a barrier problem (OTR/WVTR of the lamination), not a seam problem. Upgrading the material structure matters more than the seam style.
- You need child-resistance or reclosure. That is a closure spec — zipper, fitment, or slider — independent of fin vs lap. Specify it separately.
Send us your film spec or a failed pouch and we'll tell you which variable actually failed. Or start with the $40+ sample kit — credited to your first order — via our support team.
Technical Factory Validation & Quality Control
We don't just supply pouches; we validate every batch. Every raw material and finished pouch runs through our 6-step testing protocol to guarantee automatic packaging line compatibility and food-safe barrier preservation.
OTR & WVTR Barrier (MOCON)
Tested under ASTM D3985 & ASTM F1249 to ensure fresh shelf life up to 18 months.
GC-MS Solvent Residue
Gas Chromatography-Mass Spectrometry ensures zero odor transfer and absolute food safety.
Heat Seal Strength (ASTM F88)
Guarantees no seam burst under high pressure, perfect for VFFS automatic packing lines.
BRCGS Global Standard
Produced in Class 100,000 dust-free cleanrooms, ensuring zero contamination.
Puncture Resistance (ASTM F1306)
Prevents tear or puncture from sharp, hard items like coffee beans and pet kibble.
Tensile Strength (ASTM D882)
Ensures shape retention and structural integrity when heavy bags are dropped or stacked.
Packaging Transformation for Fin Seal vs Lap Seal: Complete Guide to Flexible Packaging Seams
See how upgrading from generic commoditized bags to precision-engineered flexible barrier packaging eliminates transport failures and boosts shelf authority.
Standard / Generic Packaging (Before)
Standard stock bags fail under transit stress and expose sensitive goods to moisture, UV light, and oxygen.
- Rapid Oxidation & Flavor DegradationCheap films allow O2 & moisture ingress, spoiling contents in < 30 days.
- High Seal Breakage in TransitThin seams fail under drop tests, leading to customer refunds & lost trust.
- Heavy Plastic Tax PenaltiesMulti-layer unrecyclable packaging incurs up to €800/ton in EU PPWR fines.
- High MOQs & Plate Cost FrictionTraditional printers force 10,000+ unit minimums and $1,500 cylinder fees.
Achieve Pack / Pouch Eco Solution (After)
Custom engineered multi-layer pouch structure tailored to your exact moisture barrier, seal strength, and aesthetic requirements.
- Ultra High-Barrier Foil/EVOH CoreGuaranteed OTR < 0.1 cc/m²/day, keeping contents fresh for 18–24 months.
- Reinforced 45N/15mm Localized Heat Seal180°C precision seam dwell time prevents bursting even under 2-meter drops.
- 100% Certified Eco ComplianceTÜV OK Compost HOME (EN13432) & Mono-PE Recyclable structures (0% Tax).
- HD Digital Printing with 500-Unit Low MOQsPrint multi-SKU runs in 7 business days with zero setup plate charges.
Technical Specification Matrix
| Parameter | Fin Seal Specification | Lap Seal Specification |
|---|---|---|
| Seal Structure | Inside-to-Inside (Sealant to Sealant) | Inside-to-Outside (Sealant to Outer Layer) |
| Tensile Seam Strength | High (Hermetic weld) | Moderate to Low (Adhesive dependent) |
| Material Utilization | Standard (Requires 12-20mm fin flap) | Excellent (Saves 10-15% film width) |
| Film Compatibility | Works with single-side sealable films | Requires double-side sealable/treated films |
| Typical Applications | Coffee, liquid, pet food, medical pouches | Potato chips, candy bars, dry snacks |
