What is a K-Seal Stand-Up Pouch?
A K-Seal stand-up pouch features a bottom gusset seal shaped like the letter "K". Unlike standard Doypack (round bottom) pouches, the K-seal joins the side seals and bottom seals at a 30-degree angle. This structural modification guides heavy contents toward the center base rather than letting it push outward against the fragile bottom corners.
Core Structural Differences:
- →Standard Doypack: Best for lightweight products under 250g. Heavy items stretch the rounded base, causing the bag to lean or tip over.
- →K-Seal: Redirects product mass weight downward. Ideal for products between 500g and 2.5kg.
- →Plow Bottom (Delta Seal): Lacks seals on the bottom crease, maximizing volume. Ideal for dry powders and extremely heavy bulk items.
Why K-Seals Excel with Heavy Content
Heavy products like dog kibble, coffee beans, coarse bath salts, and agricultural seeds subject the bottom seams of a pouch to continuous outward pressure. A standard Doypack seal has a weak point where the side seal meets the bottom curve, leading to corner tears during shipping. A K-Seal reinforces this area by sealing the film layers flat, dispersing the mechanical tension.
Mechanical Advantages
- ✓ Prevents bottom corner splits and seam blowouts
- ✓ Keeps the pouch standing vertically upright on store shelves
- ✓ Minimizes packaging creasing and folds
- ✓ Enhances drop-test durability from high retail racks
Heavy Product Matches
- ✓ Pet Food & Dog Treats (500g - 2kg)
- ✓ Grains, Rice, Oats & Baking Flour
- ✓ Coarse Bath Salts & Laundry Powders
- ✓ Specialty Coffee Beans (1lb / 2lb wholesale bags)
Technical Specs & Tolerances for Heavy Packaging
Our manufacturing lines implement strict quality criteria to support heavy weight loads. Film caliper thickness and seal integrity are tested under industrial drop guidelines:
| Weight Capacity | Recommended Film Caliper | Bottom Gusset Style Recommendation |
|---|---|---|
| 500g (1lb) | 120 - 130 Microns | K-Seal Bottom Gusset |
| 1kg (2.2lb) | 140 - 150 Microns | Reinforced K-Seal Bottom Gusset |
| 2.5kg+ (5lb+) | 160+ Microns | Plow Bottom or Flat Bottom Box Pouch |

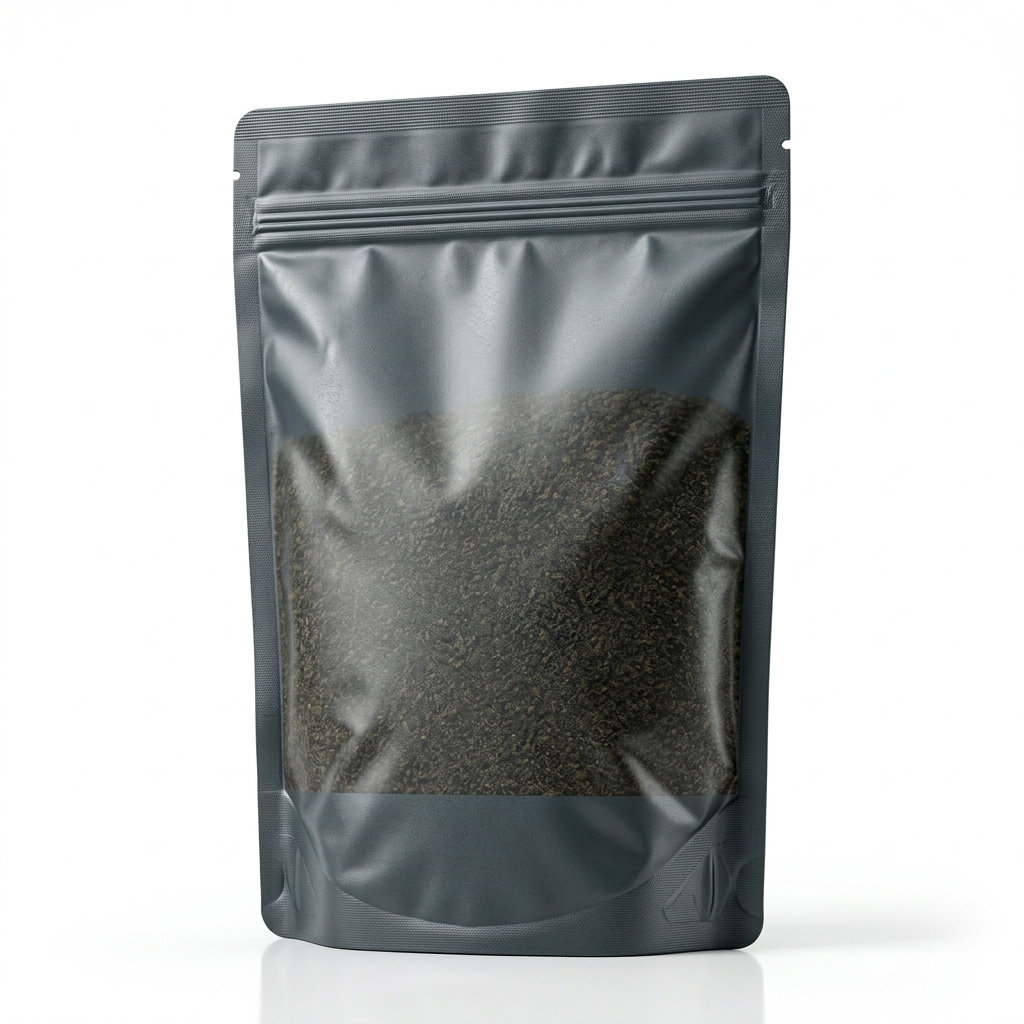

5 Common K-Seal Packaging Problems (And Solutions)
Bottom gusset bursting under heavy weight
K-Seal provides angled seals to distribute stress and prevent blowouts.
Pouch tipping over on retail shelves
The flat bottom created by the K-Seal design ensures maximum stability.
Pinholes forming at the seal junctions
Optimal heat and pressure distribution during the sealing process eliminates weak spots.
Difficulty in filling due to narrow openings
The wide opening provided by the K-Seal structure allows for easy, high-speed automated filling.
Uneven weight distribution causing aesthetic issues
Symmetrical gusset engineering ensures a uniform, premium appearance even with dense products.
When a K-seal pouch is NOT the right call
- →Your product is mostly liquid — the K-seal's flat top suits heavy dry contents; liquids want a spout or a different seal geometry.
- →You need a full-width tear-open or a gusset base — the K-seal trades those for a flat, stable top; a standard stand-up or flat-bottom may fit your pack style better.
- →Judging from renders alone — the K-seal's behaviour under heavy fill is best verified with a physical sample, not a mockup.
The $40+ Sample Kit includes the K-seal structure — fill it heavy, stack it, and see why it holds.
AchievePack Eco Material Specifications
Direct-Factory Certified Sustainable Laminates
AchievePack designs and manufactures five classes of circular flexible barrier packaging materials. These options help brand owners meet regulatory standards (like EU PPWR and state-level laws) without sacrificing barrier performance or shelf-life.
1. Curbside Recyclable Mono-PE
Made from 100% Polyethylene (LDPE #4). This single-polymer structure is fully recyclable through European/UK curbside collection and USA Store Drop-Off networks. Optional EVOH coatings (<5% total weight) deliver extreme oxygen and moisture barriers without compromising the recycling stream.
2. Heat-Resistant Recyclable Mono-PP
Formulated from single-polymer Polypropylene (PP #5), providing excellent optical clarity, high rigidity, and thermal tolerance. Engineered specifically to survive hot-fill processes, pasteurization, retort cooking, and microwave sterilization lines.
3. Certified Compostable Biopolymers
Constructed from plant-derived biopolymers including natural Kraft paper, NatureFlex cellulose, and certified PLA/PBAT/PHA sealable blends. Extensively tested and certified under ASTM D6400 (USA) and EN 13432 (EU) to degrade into organic soil nutrients within 180 days.
4. PCR (Post-Consumer Recycled) Polymers
Integrates GRS-certified post-consumer recycled plastic resins into the laminate structure. Helps brands reduce dependence on virgin fossil resources, lower carbon footprints, and completely bypass plastic packaging taxes in global regions.
5. Carbon-Negative Sugarcane Bio-PE
Sourced from sugarcane bio-PE that acts exactly like petroleum PE. Captures atmospheric CO₂ during sugarcane growth, delivering carbon-negative performance while remaining 100% recyclable in standard PE sorting streams (#4).
Technical Factory Validation & Quality Control
We don't just supply pouches; we validate every batch. Every raw material and finished pouch runs through our 6-step testing protocol to guarantee automatic packaging line compatibility and food-safe barrier preservation.
OTR & WVTR Barrier (MOCON)
Tested under ASTM D3985 & ASTM F1249 to ensure fresh shelf life up to 18 months.
GC-MS Solvent Residue
Gas Chromatography-Mass Spectrometry ensures zero odor transfer and absolute food safety.
Heat Seal Strength (ASTM F88)
Guarantees no seam burst under high pressure, perfect for VFFS automatic packing lines.
BRCGS Global Standard
Produced in Class 100,000 dust-free cleanrooms, ensuring zero contamination.
Puncture Resistance (ASTM F1306)
Prevents tear or puncture from sharp, hard items like coffee beans and pet kibble.
Tensile Strength (ASTM D882)
Ensures shape retention and structural integrity when heavy bags are dropped or stacked.
